PROTO is a circuit simulator in which you can create any circuit with various components and test its operability.
Features:

  • Animations of voltage and current values

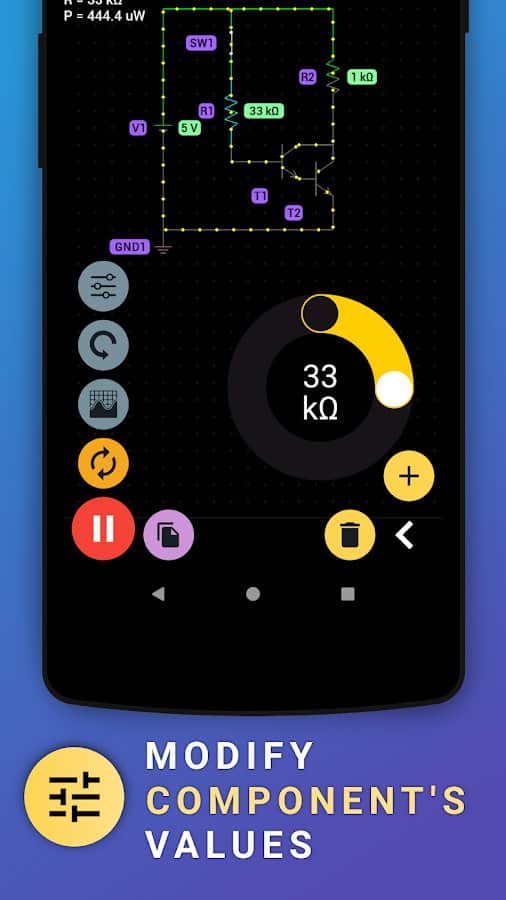

  • Adjustment of circuit parameters (such as voltage, current and others)

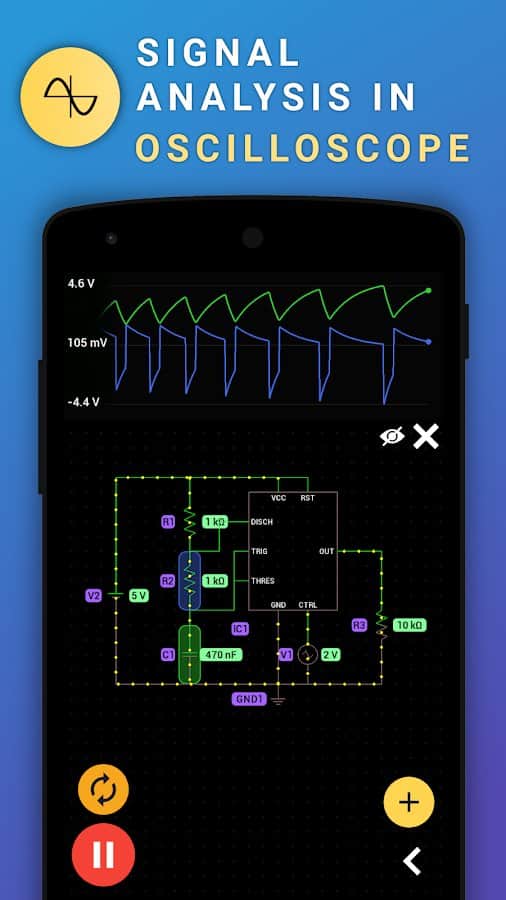

  • Four-channel oscilloscope
  • Play/pause button to control the simulation
  • Copying electronic components

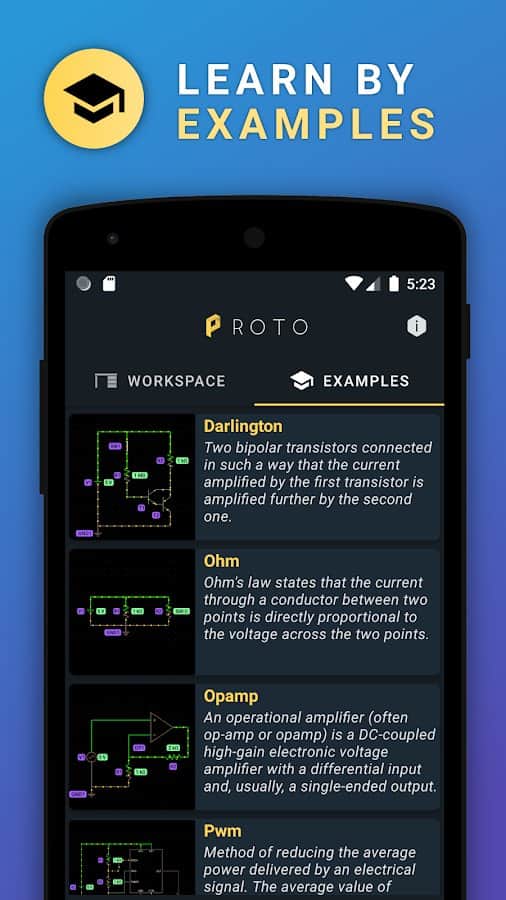

  • Study electronic circuits using examples in the application
  • Share the scheme with your friends

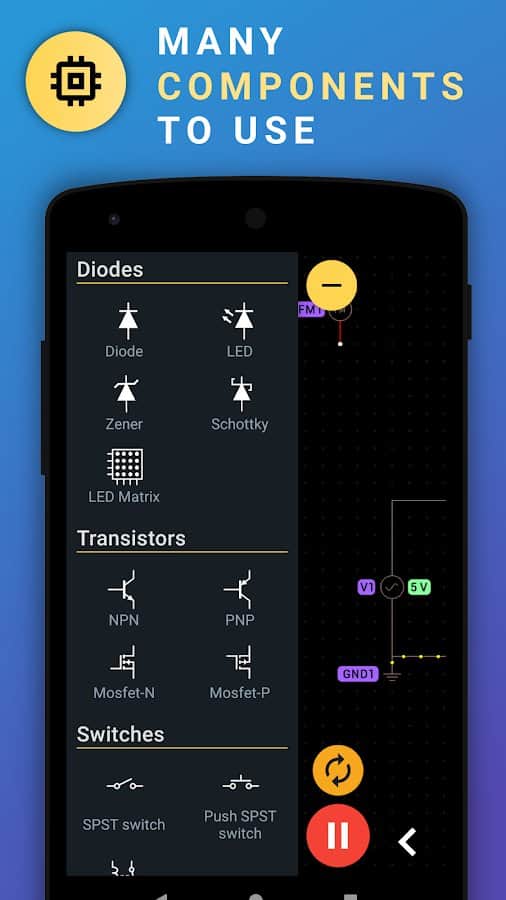

Components:

  •  Source of constant, alternating, square, trinage, sawtooth, pulse,
  • noise voltage
  •  Current source
  •  Resistor
  •  Potentiometer
  •  Capacitor
  •  Polarized capacitor
  •  Inductor
  •  Transformer
  • Diode (Rectifier Diode, LED, Zener, Schottky)
  •  Transistor (NPN, PNP, N and P channel Mosfet)
  •  Switches (SPST, relays)
  • Light bulb
  •  Operational amplifier
  •  Timer 555 (NE555)
  • Digital gates (AND, NON-AND, OR, NON-OR, Non-Exclusive OR, Inverter)
  •  Voltmeter
  • Ammeter
  •  Fuse
  • Photoresistor (the phone's light sensor is used)
  •  Analog-to-digital converter (ADC)
  •  Accelerometer (the phone's accelerometer sensor is used)
  • FM source
  •  Logic input
  • Memristor
  •  Logic input

Analog kit:

  • Tunnel diode
  •  Varactor
  • NTC thermistor
  •  Transformer with central guidance
  •  Schmitt trigger
  •  Solar battery

Digital kit:

  • Adder
  •  Counter
  •  Fixing scheme
  • PISO register
  • SIPO register
  •  Seven-segment decoder
  •  Sequence Generator
  • D-trigger
  • T-trigger
  • JK-trigger
  • Multiplexer
  • Demultiplexer

Set of accessories:

  •  Wobbulator
  •  Source AM
  • SPDT switch
  • Digital-to-analog Converter (DAC)
  •  Antenna
  •  Spark gap
  •  LED strip
  • RGB LED
  •  Ohmmeter

Sensor Kit:

  • Pressure
  •  Gyroscope
  •  Light
  • Magnetic field
  • Proximity
  • Temperature

App rating

Editors rating
Rating of 2 users
5
Rate this app

Requirements to v1.14.0

  • OS version: Android 5.0+
  • Internet: not required
  • Requires free space: 23 Mb
